What Is Ohm's Law Calculator and Why It Matters
The Ohm's Law Calculator is an electrical engineering tool that computes the relationship between voltage (V), current (I), and resistance (R) in an electrical circuit. Based on George Simon Ohm's fundamental discovery in 1827, this calculator applies the principle that voltage equals current multiplied by resistance (V = IR), enabling engineers, technicians, and students to quickly determine any one of these three quantities when the other two are known.
Ohm's Law is the foundation of circuit analysis. It governs how electrical energy flows through conductors and components, determining everything from the brightness of a light bulb to the heat generated by a resistor. The calculator extends beyond the basic V = IR relationship to include power calculations (P = VI = I²R = V²/R), providing a complete picture of electrical behavior in resistive circuits.
The primary problem this calculator solves is the need for rapid, accurate electrical calculations during circuit design, troubleshooting, and analysis. While the formulas are simple, applying them repeatedly across complex circuits with multiple components requires consistent accuracy. The calculator eliminates arithmetic errors and provides instant results, allowing professionals to focus on design decisions rather than computation.
How to Accurately Use the Ohm's Law Calculator for Precise Results
Step-by-Step Guide
- Step 1: Identify known values. Determine which two of the four quantities (voltage, current, resistance, power) you know from measurements or specifications.
- Step 2: Enter the known values. Input the two known quantities with appropriate units (volts, amps, ohms, watts).
- Step 3: Calculate. The calculator instantly computes the remaining two unknown quantities.
- Step 4: Verify reasonableness. Check that results fall within expected ranges for your application.
Tips for Accuracy
- Ensure unit consistency — use milliamps (mA) with milliwatts (mW) or amps (A) with watts (W), but do not mix scales without conversion.
- Ohm's Law applies to resistive (ohmic) circuits. For circuits with capacitors or inductors, impedance calculations are needed instead.
- Measured values may differ from calculated values due to component tolerances, temperature effects, and wire resistance.
- For parallel and series circuits, calculate equivalent resistance before applying Ohm's Law to the complete circuit.
Real-World Scenarios & Practical Applications
Scenario 1: LED Circuit Design
An electronics hobbyist wants to connect a red LED (forward voltage 2V, rated current 20mA) to a 9V battery. The Ohm's Law Calculator determines the required current-limiting resistor: R = (9V − 2V) ÷ 0.020A = 350Ω. The nearest standard resistor value is 330Ω, resulting in actual current of 7V ÷ 330Ω = 21.2mA — safely within the LED's specifications. Power dissipated by the resistor is 0.0212A × 7V = 0.148W, so a standard 1/4W resistor is adequate.
Scenario 2: Electrical Troubleshooting
An electrician measures 110V across a heater element that draws 12A. The Ohm's Law Calculator determines the heater resistance is 9.17Ω and power consumption is 1,320W. Comparing against the heater's rated specifications of 1,500W at 120V (resistance should be 9.6Ω), the technician identifies that the lower-than-expected voltage supply is causing reduced heating performance — the issue is in the supply circuit, not the heater itself.
Scenario 3: Wire Sizing for Solar Installation
A solar installer needs to run 15A from panels to an inverter through 50 feet of wire. Using Ohm's Law, the maximum acceptable voltage drop (3% of 48V = 1.44V) determines the maximum wire resistance: R = 1.44V ÷ 15A = 0.096Ω for the total run (100 feet round trip). This requires wire with resistance no more than 0.00096Ω per foot, guiding the selection of appropriate wire gauge (6 AWG copper at 0.000395Ω/ft meets the requirement).
Who Benefits Most from the Ohm's Law Calculator
- Electrical Engineers: Professionals designing circuits, specifying components, and analyzing electrical systems use Ohm's Law calculations continuously.
- Electronics Hobbyists: Makers and DIY enthusiasts designing Arduino projects, LED circuits, and custom electronics rely on quick Ohm's Law calculations.
- Electricians: Tradespeople troubleshooting wiring, sizing conductors, and verifying circuit performance use these calculations on the job daily.
- Physics Students: Students learning electromagnetism use the calculator to verify homework solutions and build intuition about electrical relationships.
- Automotive Technicians: Mechanics diagnosing electrical faults in vehicles apply Ohm's Law to test circuits and identify defective components.

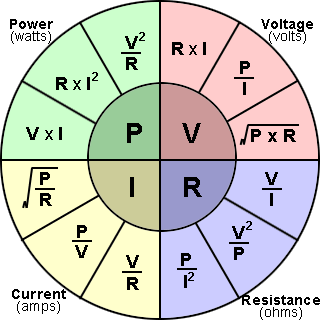

Technical Principles & Mathematical Formulas
Ohm's Law (Basic Form)
V = I × R
Rearranged:
- I = V ÷ R (current from voltage and resistance)
- R = V ÷ I (resistance from voltage and current)
Power Formulas
- P = V × I (power from voltage and current)
- P = I² × R (power from current and resistance)
- P = V² ÷ R (power from voltage and resistance)
Series Circuit Rules
- Total resistance: R_total = R₁ + R₂ + R₃ + ...
- Current is the same through all components
- Voltages add up: V_total = V₁ + V₂ + V₃ + ...
Parallel Circuit Rules
- Total resistance: 1/R_total = 1/R₁ + 1/R₂ + 1/R₃ + ...
- Voltage is the same across all branches
- Currents add up: I_total = I₁ + I₂ + I₃ + ...
Frequently Asked Questions
Does Ohm's Law apply to AC circuits?
Ohm's Law applies to AC circuits when using impedance (Z) instead of resistance: V = IZ. Impedance accounts for resistance, capacitive reactance, and inductive reactance. For purely resistive AC circuits, Ohm's Law applies directly with RMS voltage and current values.
Why do some components not follow Ohm's Law?
Non-ohmic devices like diodes, transistors, and gas discharge tubes have non-linear voltage-current relationships. Their resistance changes with applied voltage or current. Ohm's Law still applies at any specific operating point, but the resistance value changes as conditions change, requiring characteristic curves rather than fixed resistance values.
What is the relationship between Ohm's Law and Kirchhoff's Laws?
Ohm's Law describes the behavior of individual components, while Kirchhoff's Laws describe how voltages and currents distribute throughout a circuit. Kirchhoff's Voltage Law (sum of voltages around a loop = 0) and Kirchhoff's Current Law (sum of currents at a node = 0) work together with Ohm's Law to analyze complex circuits.
How does temperature affect resistance?
Most metals increase in resistance as temperature rises (positive temperature coefficient), while semiconductors decrease in resistance (negative temperature coefficient). The relationship is approximately linear for small temperature changes: R(T) = R₀ × [1 + α(T − T₀)], where α is the temperature coefficient of resistance.
What units are used in Ohm's Law?
The SI units are volts (V) for voltage, amperes (A) for current, ohms (Ω) for resistance, and watts (W) for power. Common subunits include millivolts (mV), milliamps (mA), kilohms (kΩ), megohms (MΩ), and milliwatts (mW). Ensure consistent units within any calculation.
