Resistor Calculator
The following are tools to calculate the ohm value and tolerance based on resistor color codes, the total resistance of a group of resistors in parallel or in series, and the resistance of a conductor based on size and conductivity.
Resistor color code calculator
Use this calculator to find out the ohm value and tolerance based on resistor color codes.
 |
What Is the Resistor Calculator and Why It Matters
A resistor calculator is an electronics tool that performs essential resistance-related calculations, including determining resistance values from color codes, calculating total resistance in series and parallel circuits, applying Ohm's law, and computing power dissipation. It serves as an indispensable reference for anyone working with electronic circuits, from students building their first projects to professional engineers designing complex systems.
Resistors are the most fundamental passive electronic components, controlling current flow and voltage distribution in circuits. Their behavior follows precise mathematical relationships defined by Ohm's law (V = IR) and Kirchhoff's circuit laws. While these formulas are straightforward individually, practical circuit design often requires combining multiple calculations simultaneously, which is where the calculator provides significant value.
Accurate resistance calculations are critical for circuit functionality and safety. An incorrectly sized resistor can cause components to overheat, LEDs to burn out, microcontrollers to receive incorrect voltage levels, or entire circuits to malfunction. The resistor calculator prevents these issues by ensuring all electrical parameters are computed correctly before components are selected and installed.
How to Accurately Use the Resistor Calculator for Precise Results
The resistor calculator offers several key functions:

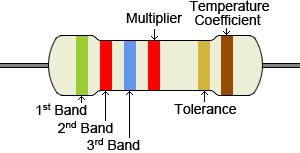

- Color Code Reading: Select the color bands on your resistor (4-band, 5-band, or 6-band) to determine its resistance value and tolerance. Each color corresponds to a specific digit or multiplier.
- Series Resistance: Enter the resistance values of resistors connected in series. The calculator sums them: R_total = R1 + R2 + R3 + ...
- Parallel Resistance: Enter resistance values for parallel-connected resistors. The calculator computes: 1/R_total = 1/R1 + 1/R2 + 1/R3 + ...
- Ohm's Law Calculations: Enter any two of voltage (V), current (I), and resistance (R) to find the third using V = IR.
- Power Dissipation: Calculate the power a resistor must handle using P = V²/R, P = I²R, or P = VI to ensure proper wattage rating selection.
When reading color codes, ensure adequate lighting and orientation. Read bands from left to right, with the tolerance band (typically gold or silver) on the right side. For parallel calculations, remember that total resistance is always less than the smallest individual resistor in the parallel combination. Always verify power dissipation to select resistors with adequate wattage ratings, typically derated to 50-75% of the maximum rating for reliability.
Real-World Scenarios & Practical Applications
Scenario 1: LED Current Limiting
An engineer needs to connect a red LED (forward voltage 2.0V, desired current 20mA) to a 5V power supply. The required current-limiting resistor is: R = (5V - 2V) / 0.020A = 150Ω. Power dissipation: P = 3V × 0.020A = 0.06W. The resistor calculator confirms that a standard 150Ω 1/8W resistor is appropriate, providing sufficient resistance and power handling capability.
Scenario 2: Voltage Divider Design
A sensor outputs 0-5V but the microcontroller input accepts only 0-3.3V. A voltage divider using two resistors can scale the voltage. For Vout = Vin × R2/(R1+R2), with Vin = 5V and Vout = 3.3V: R2/(R1+R2) = 0.66. Using the calculator with R2 = 6.6kΩ and R1 = 3.3kΩ: Vout = 5 × 6600/9900 = 3.33V. The calculator verifies the design meets the requirement.
Scenario 3: Parallel Resistance for Precise Values
A circuit requires 8.2kΩ but only 10kΩ and 47kΩ resistors are available. Connecting them in parallel: 1/R_total = 1/10000 + 1/47000 = 0.0001 + 0.0000213 = 0.0001213. R_total = 8,245Ω ≈ 8.2kΩ. The calculator quickly evaluates different resistor combinations to find the closest match to a required value using available stock.
Who Benefits Most from the Resistor Calculator
- Electronics Students: Students learning circuit theory use the calculator to verify hand calculations, read color codes, and understand resistor behavior in different configurations.
- Hobbyists and Makers: DIY electronics enthusiasts use the calculator for project design, component selection, and troubleshooting.
- Professional Engineers: Circuit designers use the tool for rapid prototyping calculations, component verification, and design validation.
- Technicians and Repair Professionals: Field technicians identify resistor values from color codes and verify circuit parameters during troubleshooting and repair.
- Educators: Teachers create circuit problems and demonstrations using the calculator to ensure correct solutions and realistic component values.
Technical Principles & Mathematical Formulas
Ohm's Law:
V = I × R (Voltage = Current × Resistance)
I = V / R (Current = Voltage / Resistance)
R = V / I (Resistance = Voltage / Current)
Series Resistance:
R_total = R1 + R2 + R3 + ... + Rn
Current is the same through all resistors; voltage divides proportionally.
Parallel Resistance:
1/R_total = 1/R1 + 1/R2 + 1/R3 + ... + 1/Rn
For two resistors: R_total = (R1 × R2) / (R1 + R2)
Voltage is the same across all resistors; current divides.
Power Dissipation:
P = V × I = I² × R = V² / R
Measured in watts (W). Standard resistor ratings: 1/8W, 1/4W, 1/2W, 1W, 2W, 5W.
Voltage Divider:
Vout = Vin × R2 / (R1 + R2)

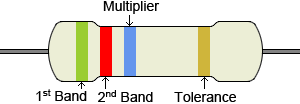

Resistor Color Code (4-band):
| Color | Digit | Multiplier | Tolerance |
|---|---|---|---|
| Black | 0 | ×1 | — |
| Brown | 1 | ×10 | ±1% |
| Red | 2 | ×100 | ±2% |
| Orange | 3 | ×1K | — |
| Yellow | 4 | ×10K | — |
| Green | 5 | ×100K | ±0.5% |
| Blue | 6 | ×1M | ±0.25% |
| Violet | 7 | ×10M | ±0.1% |
| Gray | 8 | — | ±0.05% |
| White | 9 | — | — |
| Gold | — | ×0.1 | ±5% |
| Silver | — | ×0.01 | ±10% |
Frequently Asked Questions
How do I read a resistor color code?
Hold the resistor with the tolerance band (gold, silver, or wider gap) on the right. Read bands left to right: first two bands are digits, third band is the multiplier, fourth band is tolerance. For a resistor with Brown-Black-Orange-Gold bands: 1-0-×1000 = 10,000Ω (10kΩ) ±5%.
Why is the total parallel resistance always less than the smallest individual resistor?
Adding a parallel path always provides additional current flow, reducing total resistance. Think of it as opening additional lanes on a highway — each new lane (parallel resistor) increases total traffic capacity (current), which corresponds to lower overall resistance.
How do I choose the correct wattage rating for a resistor?
Calculate the power dissipation using P = V²/R or P = I²R, then select a resistor rated for at least twice the calculated power for reliable operation. Standard ratings are 1/8W, 1/4W, 1/2W, and 1W for through-hole components. Operating at or near the maximum rating reduces the resistor's lifespan and reliability.
What is the difference between tolerance and precision?
Tolerance specifies how much the actual resistance may deviate from the labeled value. A 100Ω ±5% resistor can range from 95Ω to 105Ω. Precision (or accuracy) refers to how consistently the resistor maintains its value under varying conditions. High-precision resistors (±0.1% or better) are used in measurement circuits and instrumentation.
Can I use any combination of resistors to achieve a specific value?
Yes. Series combinations produce values higher than any individual resistor, while parallel combinations produce values lower than any individual resistor. By combining series and parallel configurations, you can approximate virtually any resistance value using standard component values. The resistor calculator helps identify optimal combinations.
